Fuchs OEM Orange Peel Grapple Ships from Miami to Panama

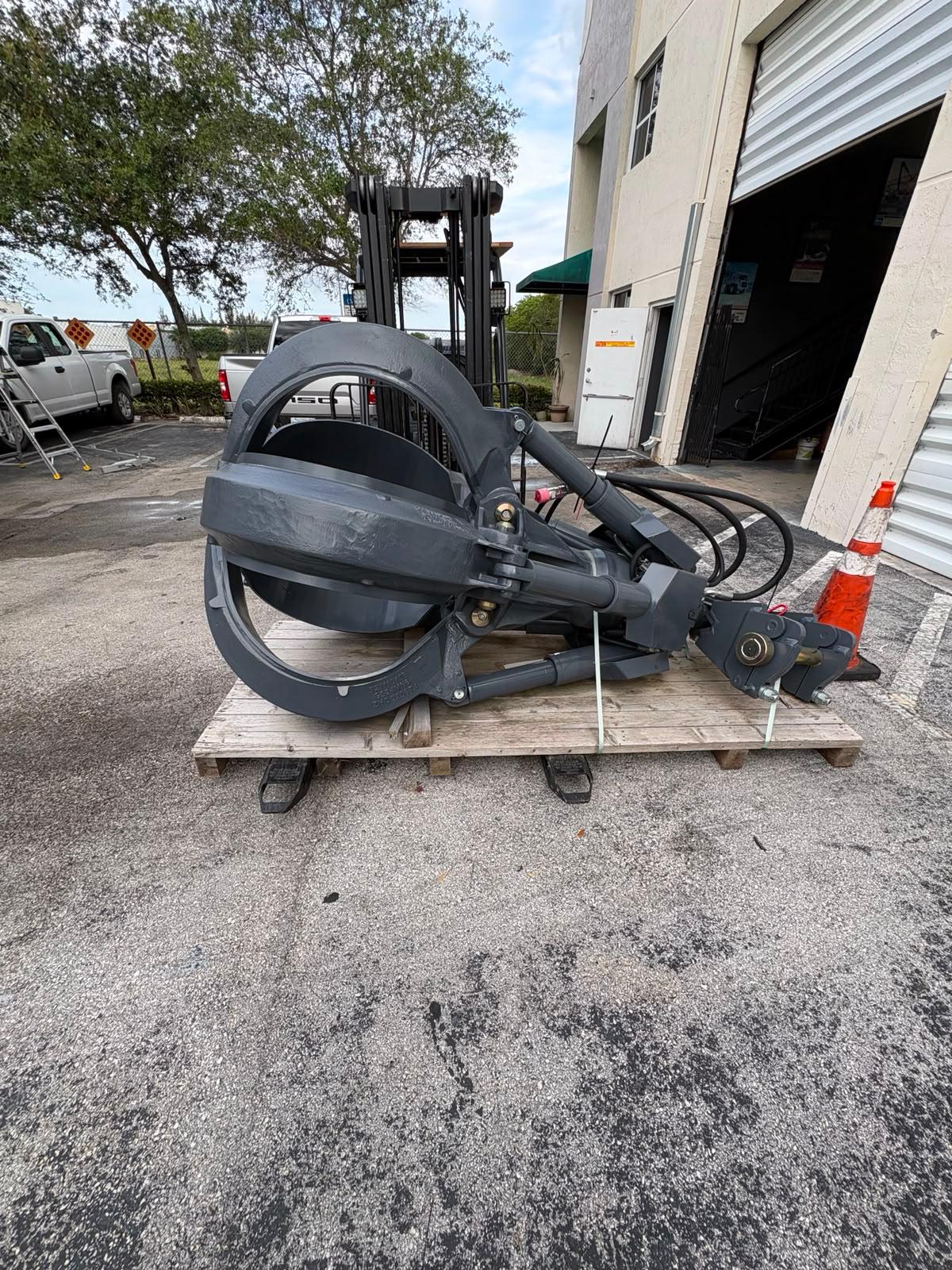

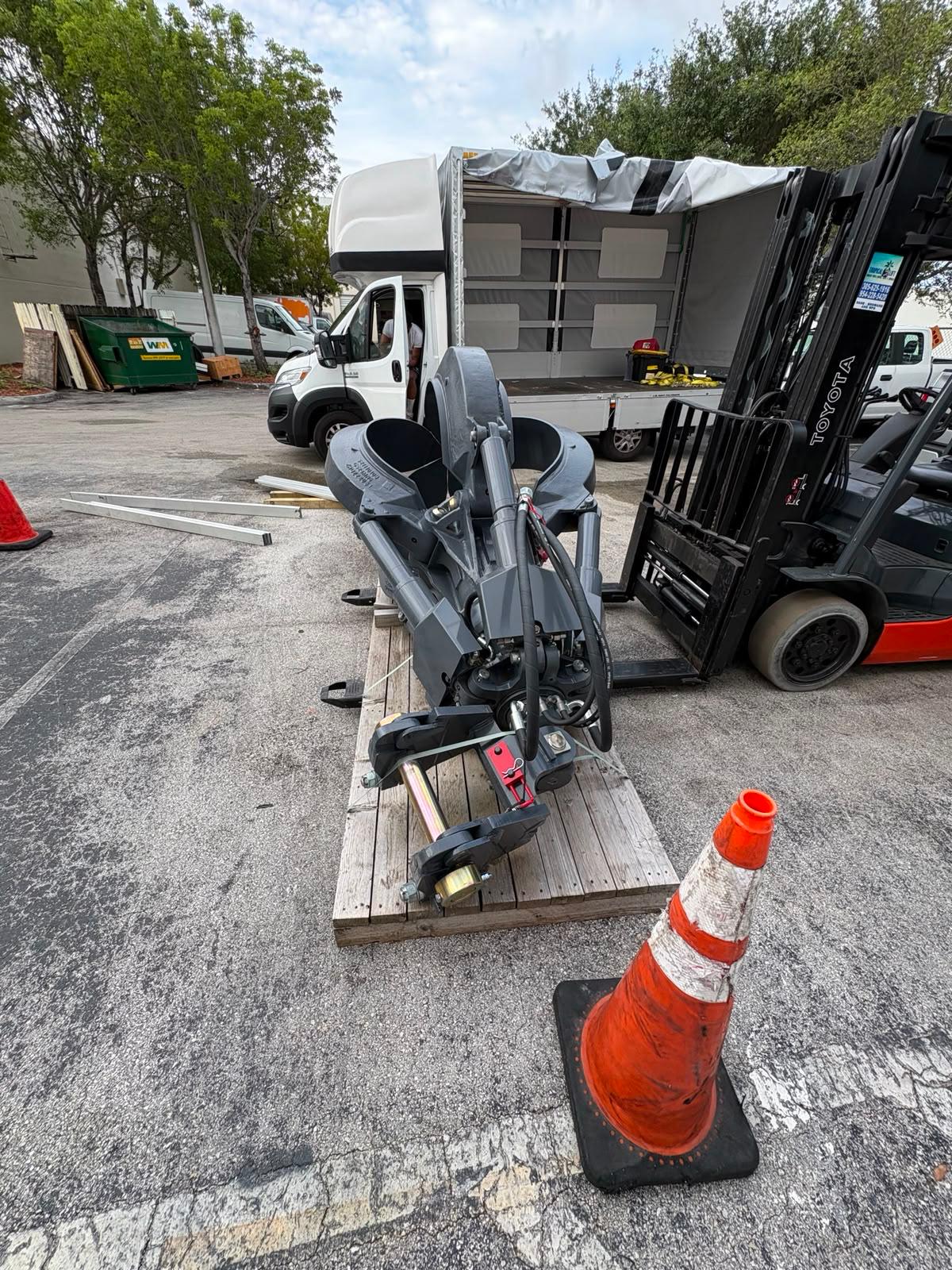

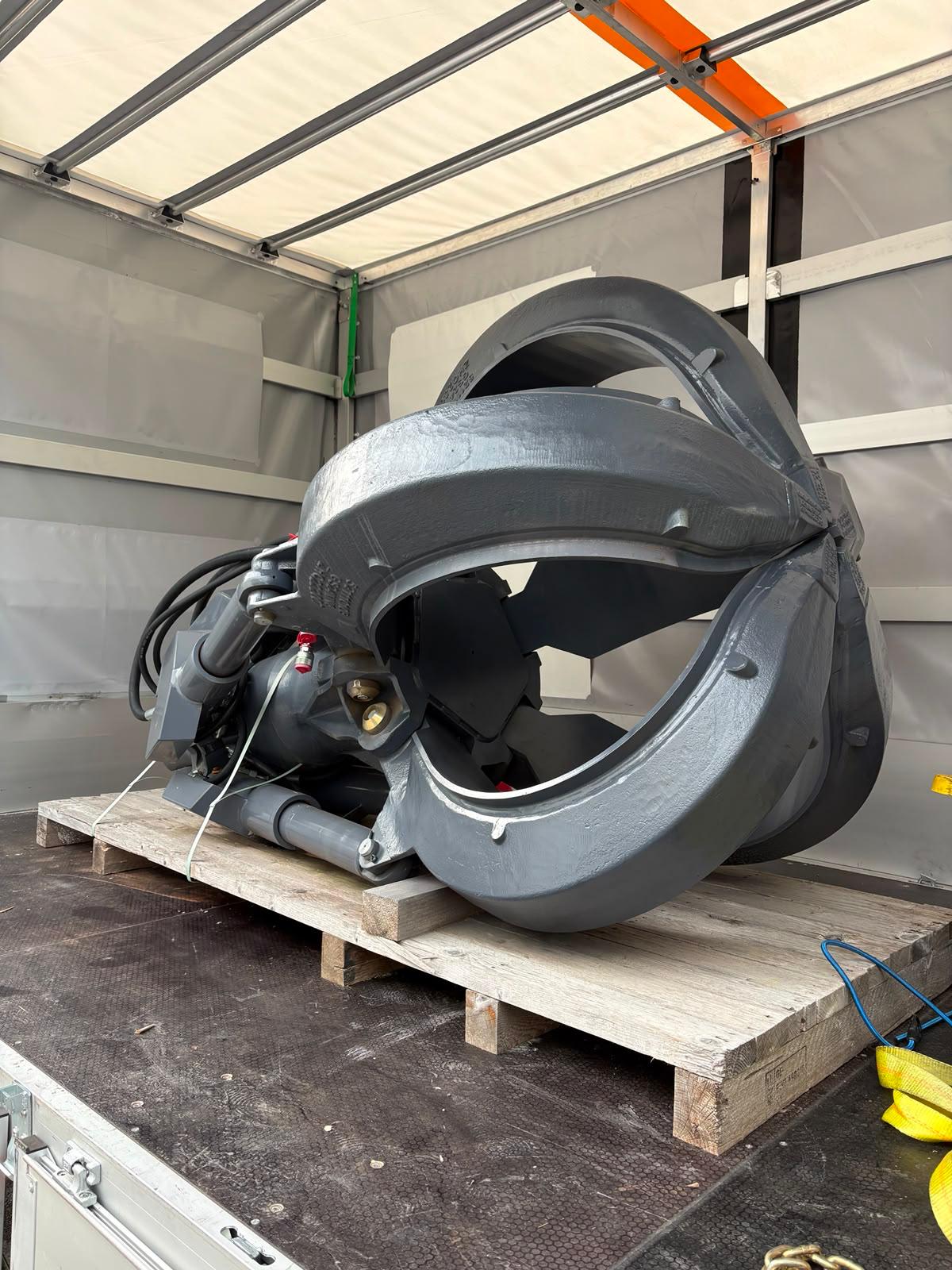

Last week our team pushed a heavy pallet out the back of our warehouse at 5960 NW 99 Ave, swung a Toyota forklift around, and loaded a Fuchs OEM orange peel grapple onto a truck headed for the port. Destination: Panama. Another one out the door.

We get asked about attachments a lot, and the orange peel grapple is one of those parts that people either know intimately or have never thought about. So while this one is already on its way to a scrap operation in Central America, we figured it was worth writing up, because the questions will come again.

What Is an Orange Peel Grapple?

An orange peel grapple is a hydraulic attachment that mounts to the stick of a material handler or excavator. The name comes from the way it opens: the tines splay outward like the sections of a peeled orange, wide enough to engulf a loose pile of scrap, debris, or bulk material, and then close around it. It is the workhorse of scrap yards, demolition sites, ports, and bulk-handling terminals.

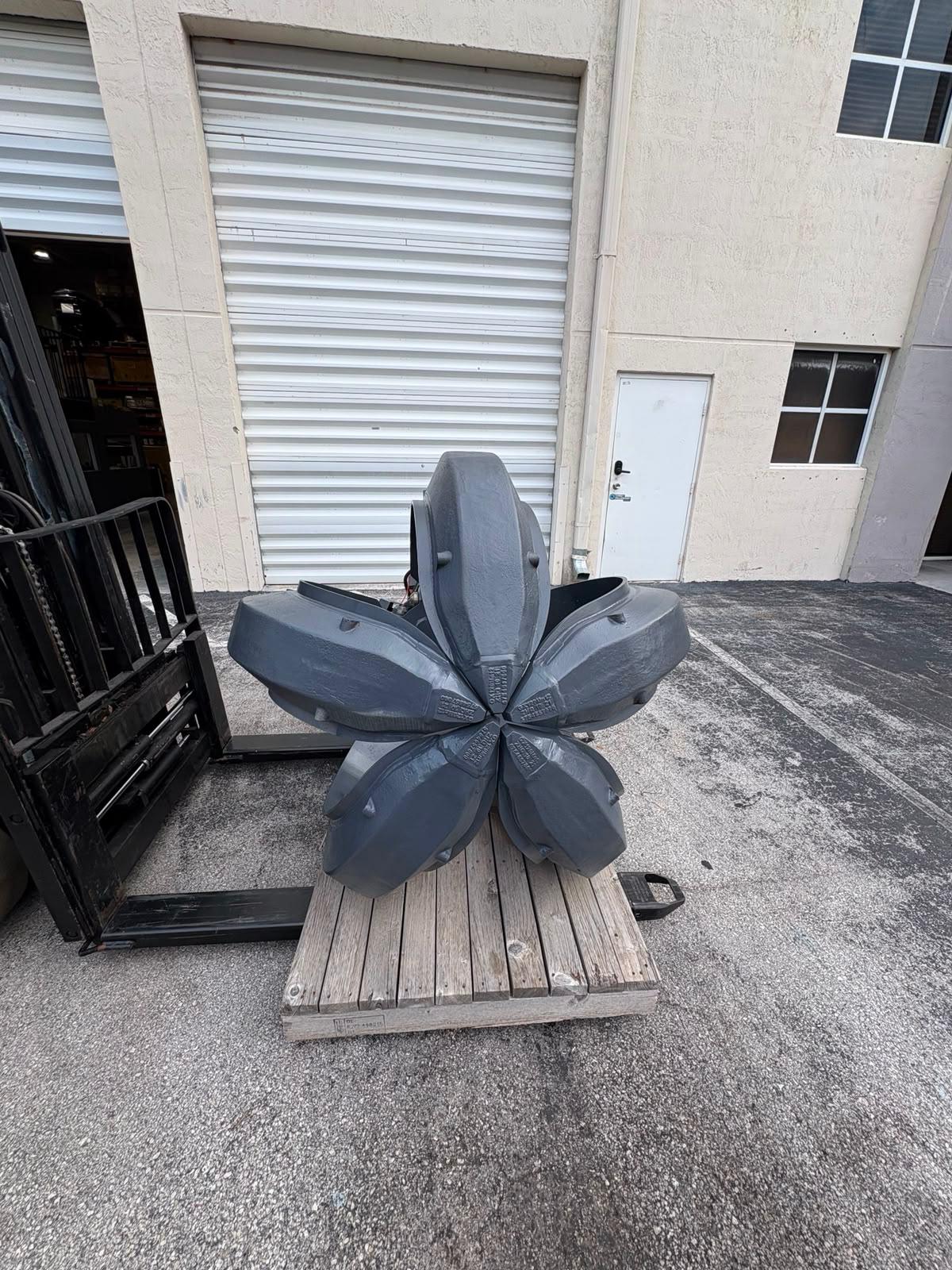

The one we just shipped is an OEM Fuchs unit, 5-tine (sometimes called 5-petal) configuration, approximately 800-liter class, with a hydraulic rotator and factory Fuchs grey paint. It is built to mount directly onto a Fuchs material handler stick, covering the MHL340, MHL350, MHL360, and MHL380 series and compatible machines in that range.

The 5-tine design gives you better coverage on loose, irregular loads compared to a 3 or 4-tine unit. When you are grabbing shredded scrap, rebar bundles, demolition concrete, or mixed slag, a tighter jaw pattern means less spillage and fewer passes. That translates directly to cycle time, and in a busy scrap yard, cycle time is money.

Who Uses These?

The typical buyers for an attachment like this fall into a few clear categories:

• Scrap metal processors and recycling yards running material handlers full shifts, loading shredders, sorting ferrous from non-ferrous
• Demolition contractors clearing structural steel, rebar, and mixed debris from job sites
• Ports and bulk terminals loading vessels with scrap, aggregate, or waste commodities
• Waste-to-energy facilities moving processed refuse or industrial waste

The Fuchs MHL series material handlers are widely used across Latin America and the Caribbean in exactly these environments. A port in Panama loading scrap containers for export is a definately common use case for this class of grapple.

Why OEM Fuchs Matters

This comes up constantly when customers are sourcing a replacement grapple. Aftermarket options exist and they can look similar on paper, but the OEM Fuchs attachment is engineered to spec for these machines.

The hydraulic rotator is the first place things go wrong on a knock-off unit. The rotator on an OEM grapple is matched to the flow and pressure specs of the Fuchs carrier. Mismatches cause seal failures, heat buildup, and premature bearing wear. On a machine running two shifts at a scrap yard, that is not a minor inconvenience, it is a production stop.

Tine geometry is the second issue. On OEM units, the jaw curvature is machined to close with even contact across all five tines. On cheaper alternatives, you often see uneven closure, which concentrates stress on one or two tines and shortens their service life considerably. Replacement tines for a Fuchs grapple are not cheap, so getting more cycles out of each set matters.

Browse our full Fuchs parts and attachment inventory or submit an RFQ if you need a specific model number and we will source it.

The Panama Shipment

ICP Miami has been the export hub for Fuchs material handler parts and attachments into Latin America for years. In 2022 we established our Panama hub specifically to improve coverage across Central America and the Caribbean, cutting lead times and simplifying customs clearance for buyers in the region.

Panama is a natural gateway for this kind of equipment. It sits at the crossroads of North and South America, with well-established port infrastructure and a strong industrial base in logistics, bulk commodities, and recycling. A scrap operation or port terminal in Panama that runs Fuchs machines knows that sourcing OEM parts from Miami is faster and more reliable than waiting on European lead times.

This particular grapple will go to work quickly once it arrives. Scrap operations do not warehouse attachments. They recieve them and bolt them on.

If you operate Fuchs material handlers in Panama, Colombia, the Dominican Republic, or anywhere across the region, we keep OEM Fuchs attachments and wear parts in inventory. The Fuchs brand page on our site covers what we stock regularly, and our team in Miami can quote and ship quickly.

For specifications on attachments, contact us directly or submit an RFQ and we will come back to you with availability and lead time.

For more on the Fuchs material handler line and the kinds of applications they cover, Fuchs Terex publishes technical documentation on their MHL series. The Institute of Scrap Recycling Industries also tracks equipment standards and best practices for scrap handlers if you want industry context on how grapple attachments are specified and maintained in professional recycling operations.
